Self Propelled Line Striper PROSTRIPE 400 SP DC AUTO - Selective Steering
SKU: 23.9941006 / Product Availability: Yes / Manufacturer: VEZOS

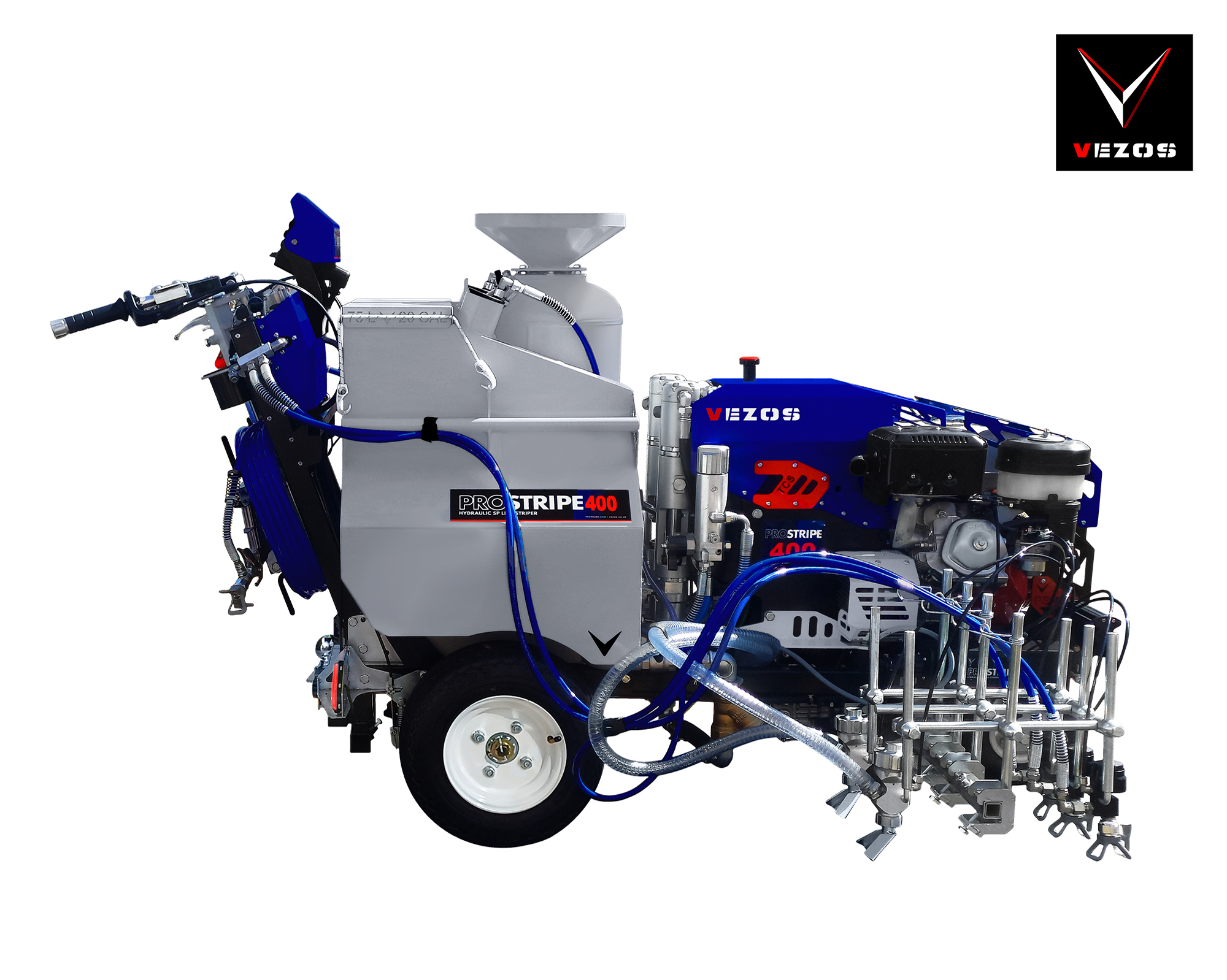

Hydraulic Self-Propelled Line Striper PROSTRIPE 400 DC
PROSTRIPE 400 DC is a fully automatic, self-propelled line striper with a dual selective steering option ideal for intersections but also long straight lines and wide curves that are difficult to achieve with a standard type striper. Instantly change the unit from a free caster front wheel to a precisely controlled steering drive method, complete with radius indicator system, double color HYDREX pumps and a 115 lit | 30 gal paint tank with dual suction hose inlets.
features
| PROSTRIPE 400 DC AUTO SP | ||
| DC 2 GUN | DC PBS 2 GUN | |
| Type | Hydraulic | Hydraulic |
| Max Pressure | 230bar - 3350psi | 230bar - 3350psi |
| Max Flow | 9.5 lpm - 2.5gpm | 9.5lpm - 2.5gpm |
| Engine | 11.7 HP | 11.7 HP |
| Guns | 1 Auto | 2 Auto |
| Dimensions(cm) | 192x85x106.5(h) | 192x85x106.5(h) |
| (with FLIPDRIVE) | 267x85x106.5(h) | 267x85x106.5(h) |
| Type | Self-Propelled | Self-Propelled |
| Pump size | 70cc x 2qty | 70cc x 2qty |
| Console | Included | Included |
| Gun set up | 2 Automatic | 2 Automatic |
| Paint Hopper | 115lit-30gal(divided) | 115lit-30gal(divided) |
| Glass Bead Syst. | - | Pressurized |
| Glass Tank Cap. | - | 50 lit - 13 gal |
| Part Num. 2 Gun | 23.9941003 | 23.9941006 |
| Part Num. 3 Gun | 23.9941004 | 23.9941007 |

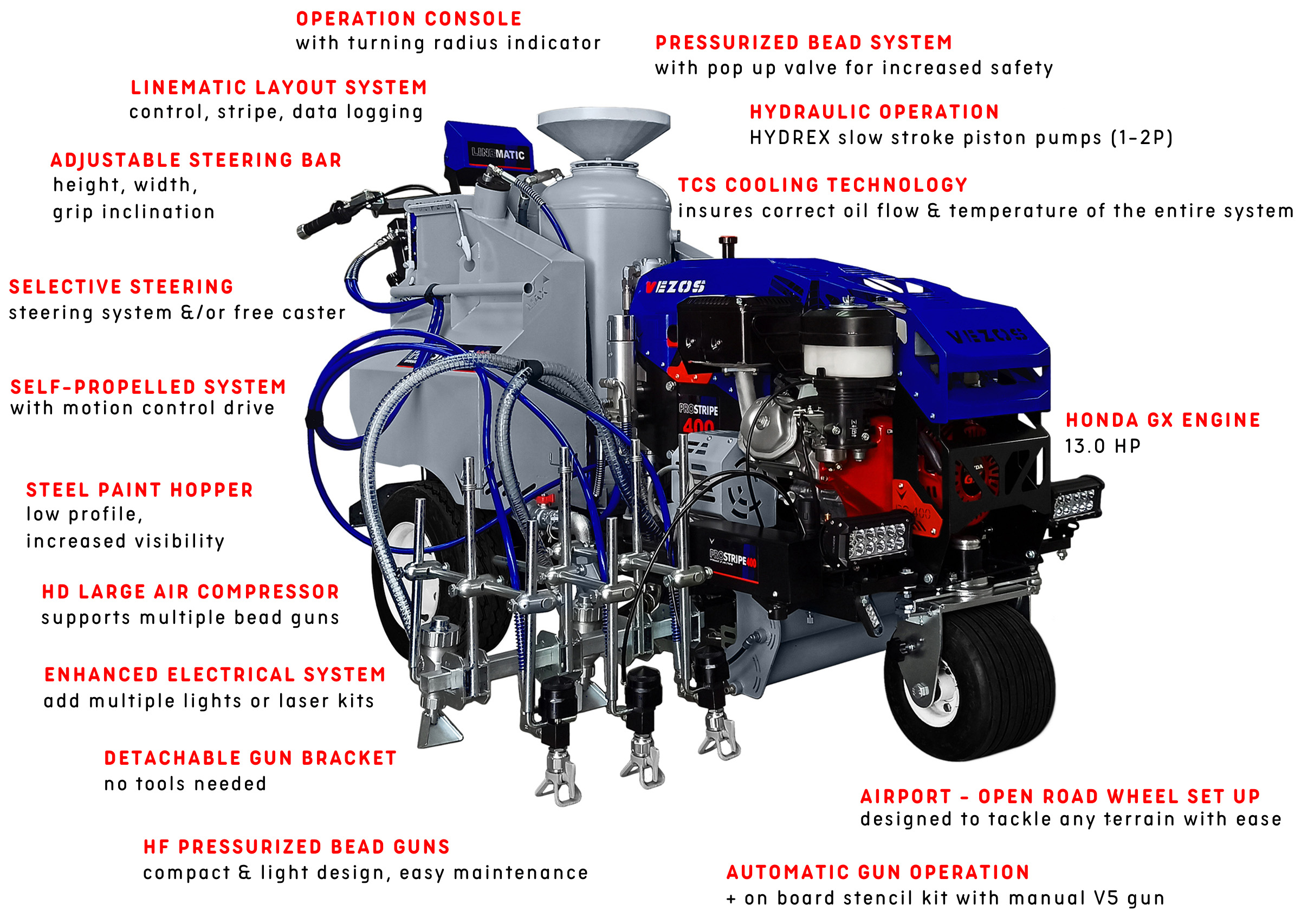

SELF-PROPELLED LINE STRIPER
√ SP system located directly on the striper
√ 3-way drive / ride system
√ Motorcycle type motion control drive
√ Operation speed 16 km/h
SELECTIVE FRONT WHEEL STEERING (SWS)
√ Position A: Precise steering from handle bar with automotive type steel bar
√ Position B: Free front caster wheel for increased maneuverability
√ Center lock-in front wheel in both positions
√ 6 ply durable tire
√ Operation speed 16 km/h
WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
√ Road view ahead even in sitting position
√ Extreme visibility even with glass bead tank in place
√ No head or body tilting to stripe | Safety first
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 70
√ 1 & 2 color set up
√ Slow stroke 9.5 l/m (2.5 gal/min) delivery
√ Built in filter
PAINT HOPPER 115 lit | 30 gal
√ Low profile paint tank for increased visibility
√ Inclined slope bottom
√ Single or double color with separate pump inlets
2 color 57 lit x 2 division | 15 gal x 2 division
√ Lift brackets & security hitches
GLASS BEAD TANK 50 lit | 13 gal
√ Pressurized bead system
√ Steel tank with pop up valve for increased safety
√ Removable loading funnel (no tools required)
AUTOMATIC GUN OPERATION
√ 2-4 automatic paint & glass gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ On board stencil kit with manual airless spray gun & hose
√ Two piston high volume air compressor to support multiple bead guns with 3.6 lit air accumulator

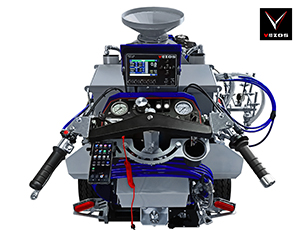

OPERATION CONSOLE PS 400
√ Turning radius indicator with lock-in system
√ Skip line controller for multiple gun operation
√ Gallon totalizers & counters
√ Kill switch | Engine throttle
√ Engine & system ON/OFF
√ Gun actuator (trigger)
√ Hand brake & cup holder

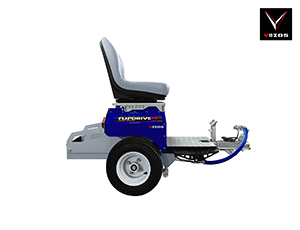

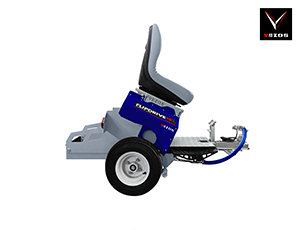

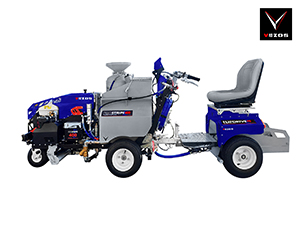

FLIPDRIVE LINE STRIPE SEAT
√ Double ascent ride | sit – stand ride along
√ Tow behind attachment
√ Rear extra space for cones or gas tank
√ Hidden tool compartment with anti-slip surface
√ Hydraulic oil reservoir with two divided sections & oil level indicator
√ Anti-vibrations control
EXTRA FEATURES
√ TCS cooling technology
√ Full flow hydraulic cooler
√ Re-striping pointer
√ Sensor box with solenoid electro-pneumatic valve
√ Hydraulic oil reservoir with two divided sections & oil level indicator
√ Anti-vibrations control
Brochures
Download: VEZOS Road Marking - Line Striping Catalog
Download: PROSTRIPE 400 SP AUTO - Selective Steering Catalog
