Line Striper PROSTRIPE 300 SP AUTO - Paint Hopper - Pressurized Bead Hopper

SKU: 23.9255048  /  Product Availability: Yes  /   Manufacturer: VEZOS

Self-Propelled Line Striper PROSTRIPE 300 SP AUTO 2 GUN | PAINT HOPPER | PBS GLASS SYSTEM

PROSTRIPE 300 SP AUTO can be operated entirely from the PS console, including a skip line controller, engine & system on/off, kill switch, engine throttle, hand brake, gun activation & even a cup holder... equipped with a steel pressurized tank with pop-up valve and removable refill funnel - no tools needed.



Get Price Online Catalog Video




features




PROSTRIPE 300 SP AUTO + PAINT HOPPER + PBS


Self Propelled
SP+FLIPDRIVE
 Type  Hydraulic Hydraulic
 Max bar  240 bar 240 bar
 Max psi  3500 psi 3500 psi
 Max lpm  8.5 lpm 8.5 lpm
 Max gpm  2.3 gpm 2.3gpm
 Engine  9.0 HP 9.0 HP
 Guns  2 Auto 2 Auto
 Dimensions(cm)    170x72x107(h)  170x72x107(h)
 (with FLIPDRIVE)  251x72x107(h)  251x72x107(h)
 Type  Self-Propelled  Self-Propelled
 Pump size  70cc x 1 qty  70cc x 1qty
 Console  SKIP Controller SKIP Controller
 Paint Hopper  68L - 18gal  68 L - 18 gal
 Glass Bead Syst.  Pressurized Pressurized
 Glass Tank Cap.  24L - 6.5gal 24L - 6.5gal
 Re-Stripe Pointer  Optional Optional
 Part Number  23.9255048 23.9255049







 Walk behind Line Striper PROSTRIPE 300 SP AUTO - Paint Hopper - Pressurized Glass Bead Hopper

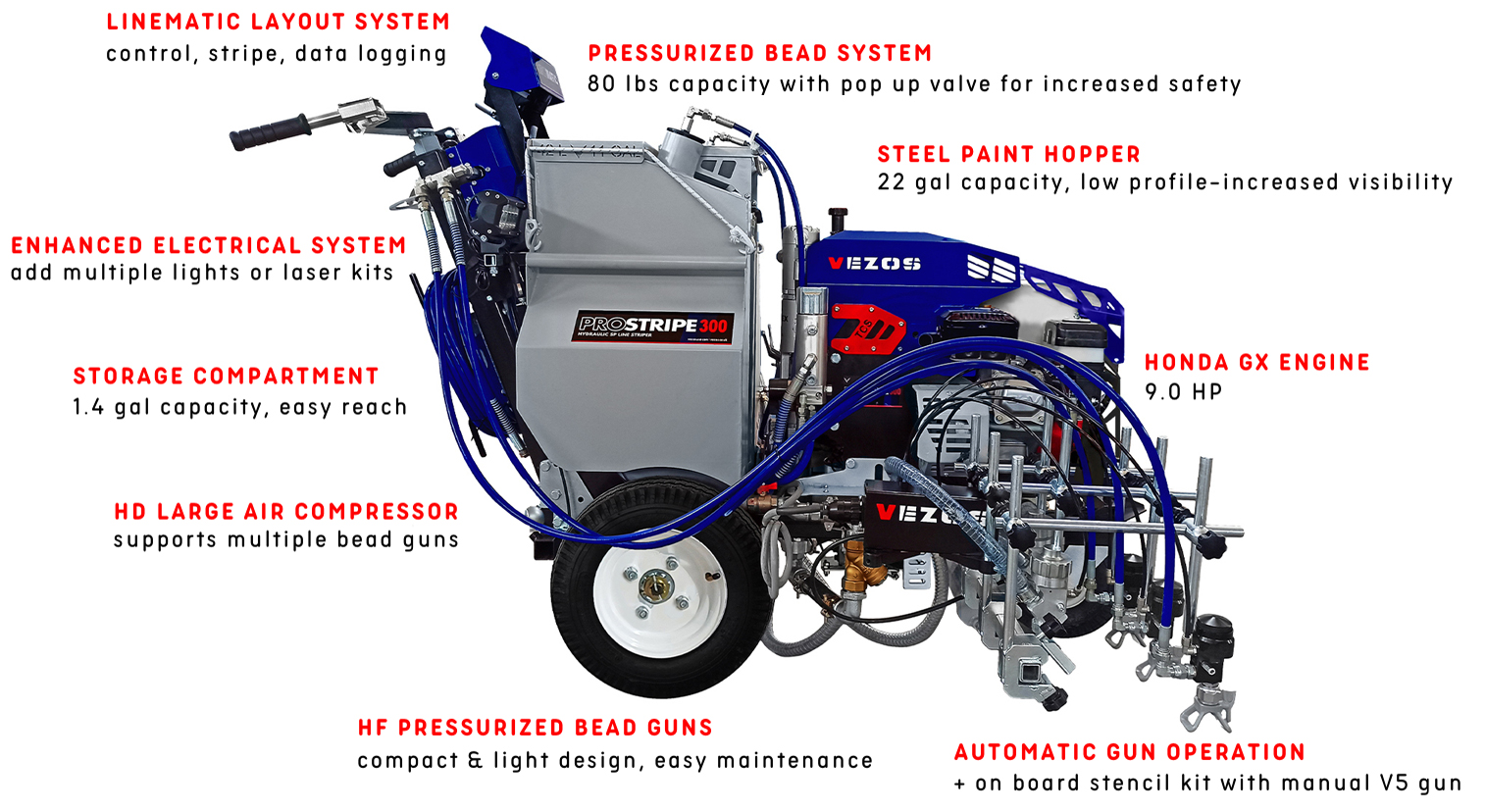

Hydraulic Self-Propelled Line Striper PROSTRIPE 300 SP AUTOMATIC

A fully automatic solution ideal for medium & large striping applications, the PROSTRIPE 300 SP AUTO line striper is equipped with a high flow pressurized glass bead system for long lasting lines.



Includes:
- Skip controller
- Pressurized glass bead tank
- Paint hopper
- Automatic airless spray gun(s) x 2 qty
- Glass bead triggers x 2qty



SELF-PROPELLED LINE STRIPER
SP system located directly on the striper
3-way drive / ride system
Motorcycle type motion control drive
Operation speed 16 km/h

WIDE VIEW DESIGN
Low profile design for panoramic view of job site
Road view ahead even in sitting position
Extreme visibility even with glass bead tank in place
No head or body tilting to stripe | Safety first

HYDREX PISTON PUMP
Hydraulic piston pump HYDREX 70
1 color set up (2 color optional)
Slow stroke 8.5 l/m (2.3 gal/min) delivery
Built in filter

PAINT HOPPER
Low profile paint tank for increased visibility
Single color with pump inlet
Lift brackets & security hitches

GLASS BEAD TANK 24 lit | 6.5 gal
Pressurized bead system
Steel tank with pop up valve for increased safety
Removable loading funnel (no tools required)

AUTOMATIC GUN OPERATION
1-2 automatic paint & glass gun set-up
Adjustable gun height
Front and rear gun placement
On board stencil kit with manual airless spray gun & hose
Two piston high volume air compressor to support multiple bead guns with 3.6 lit air accumulator

OPERATION CONSOLE PS 300
Skip line controller for multiple gun operation
Kill switch | Engine throttle
Engine & system ON/OFF
Gun actuator (trigger)
Hand brake & cup holder

FLIPDRIVE LINE STRIPE SEAT (optional)
Double ascent ride | sit – stand ride along
Tow behind attachment
Rear extra space for cones or gas tank
Hidden tool compartment with anti-slip surface
Hydraulic oil reservoir with two divided sections & oil level indicator
Anti-vibrations control

EXTRA FEATURES
TCS cooling technology
Re-striping pointer
Sensor box with solenoid electro-pneumatic valve
Hydraulic oil reservoir & oil level indicator
Anti-vibrations control
