features
PROSTRIPE 300 SP + PAINT HOPPER |
||
1 PAINT GUN |
2 PAINT GUN |
|
| Type | Hydraulic | Hydraulic |
| Max bar | 240 bar | 240 bar |
| Max psi | 3500 psi | 3500 psi |
| Max lpm | 8.5 lpm | 8.5 lpm |
| Max gpm | 2.3 gpm | 2.3gpm |
| Engine | 9.0 HP | 9.0 HP |
| Guns | 1 Manual | 2 Manual |
| Dimensions(cm) | 170x72x107(h) | 170x72x107(h) |
| (with FLIPDRIVE) | 251x72x107(h) | 251x72x107(h) |
| Type | Self-Propelled | Self-Propelled |
| Pump size | 70cc x 1 qty | 70cc x 1qty |
| Console | Basic | Basic |
| Paint Hopper | 68L - 18gal | 68 L - 18 gal |
| Glass Bead Syst. | Optional | Optional |
| Glass Tank Cap. | 21L - 5.6gal | 21L - 5.6gal |
| Re-Stripe Pointer | Optional | Optional |
| Part Number | 23.9255030 | 23.9255031 |
| (with FLIPDRIVE) | - | 23.9255032 |

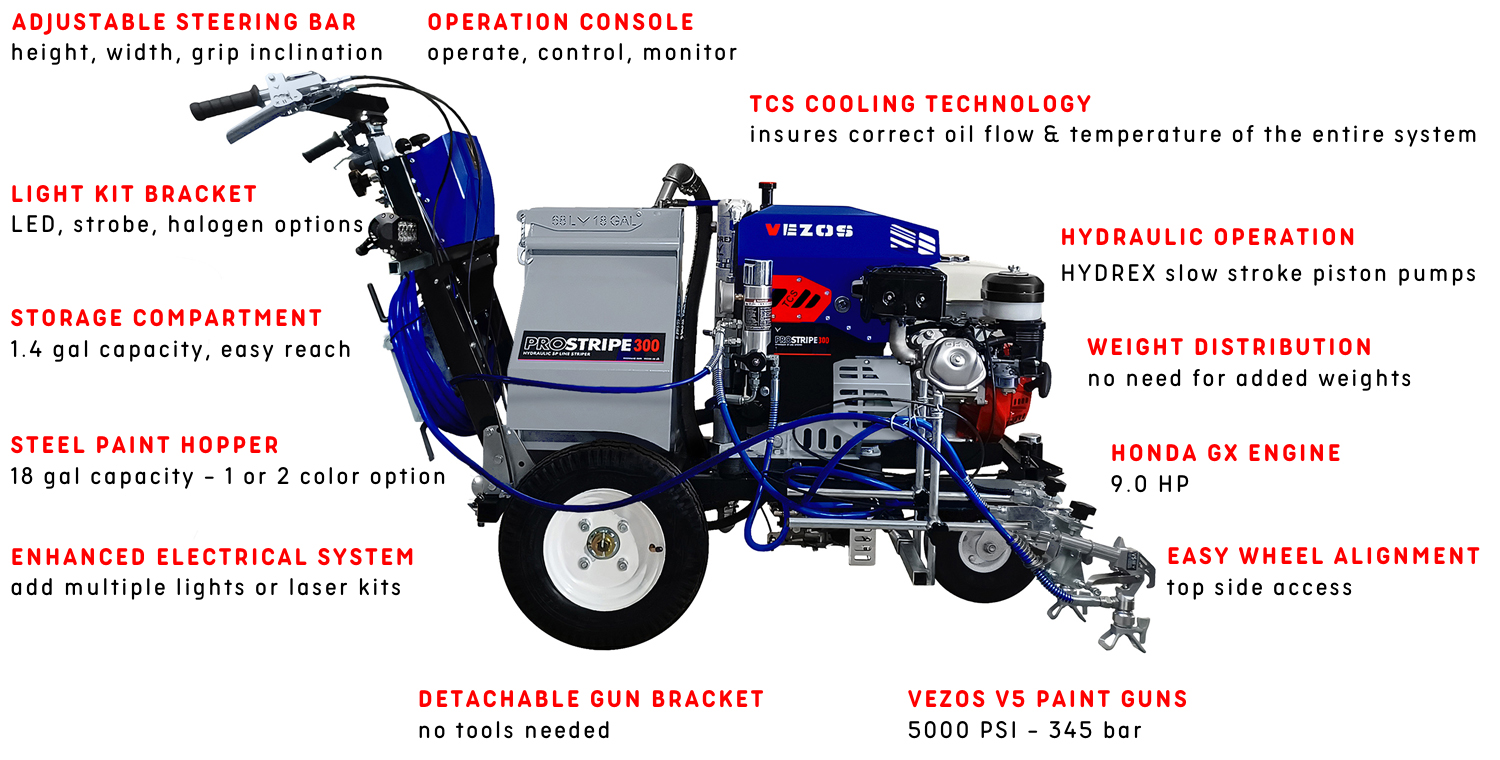

Hydraulic Self-Propelled Line Striper PROSTRIPE 300
The PS 300 SP includes a double lock trigger located on the steering bar for instant front swivel wheel engagement. The drive method of this high productive line striper is operated with a motorcycle type motion control, a line striper seat can be adapted at the rear end of the unit ideal for big parking lot and long line striping.
Includes:
- Paint hopper 68 lit
- Airless spray gun(s) x 2 qty
SELF-PROPELLED LINE STRIPER
√ SP system located directly on the striper
√ 3-way drive / ride system
√ Motorcycle type motion control drive
√ Operation speed 16 km/h
WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
√ Road view ahead even in sitting position
√ Extreme visibility even with glass bead tank in place
√ No head or body tilting to stripe | Safety first
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 70
√ 1 & 2 colour set up
√ Slow stroke 8.5 l/m (2.3 gal/min) delivery
√ Built in filter
PAINT HOPPER 68 lit | 18 gal
√ Low profile paint tank for increased visibility
√ Single or double colour
√ Lift brackets & security hitches
GLASS BEAD HOPPER 21 lit | 5.6 gal (optional)
√ Gravity tech bead system
√ Steel hopper with wide opening
√ Easy connection, no tools needed
MANUAL GUN OPERATION
√ 1-2 manual paint gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ Removable gun for stencilling
OPERATION CONSOLE PS 300
√ Kill switch | Engine throttle
√ Engine & system ON/OFF
√ Hand brake
√ Cup holder
FLIPDRIVE LINE STRIPE SEAT (optional)
√ Double ascent ride | sit – stand ride along
√ Tow behind attachment
√ Rear extra space for cones or gas tank
√ Hidden tool compartment with anti-slip surface
EXTRA FEATURES
√ TCS cooling technology
√ Re-striping pointer
√ Hydraulic oil reservoir 9 lit & oil level indicator
√ Anti-vibrations control
