Self Propelled Line Striper PROSTRIPE 300 SP - 2 Paint Gun
SKU: 23.9255028 / Product Availability: Yes / Manufacturer: VEZOS
Hydraulic Self Propelled Line Striper PROSTRIPE 300 | 2 Paint Gun
PROSTRIPE 300 SP Self-propelled Line Striper, a serious solution for professional line marking contractors who tackle challenging striping projects. This versatile and efficient machine is perfect for those seeking a high-quality, customizable product. With its user-friendly design, the PROSTRIPE 300 SP allows you to enhance its capabilities by adding various accessories such as a paint hopper, glass bead system, FLIPDRIVE ride-on seat, or operate it as is. A versatile striper, designed to meet the demands of the professional line marking industry, ensuring exceptional performance and durability. Elevate your line striping game today!
Back to: Self Propelled Line Stripers
Get Price Online Catalog Video

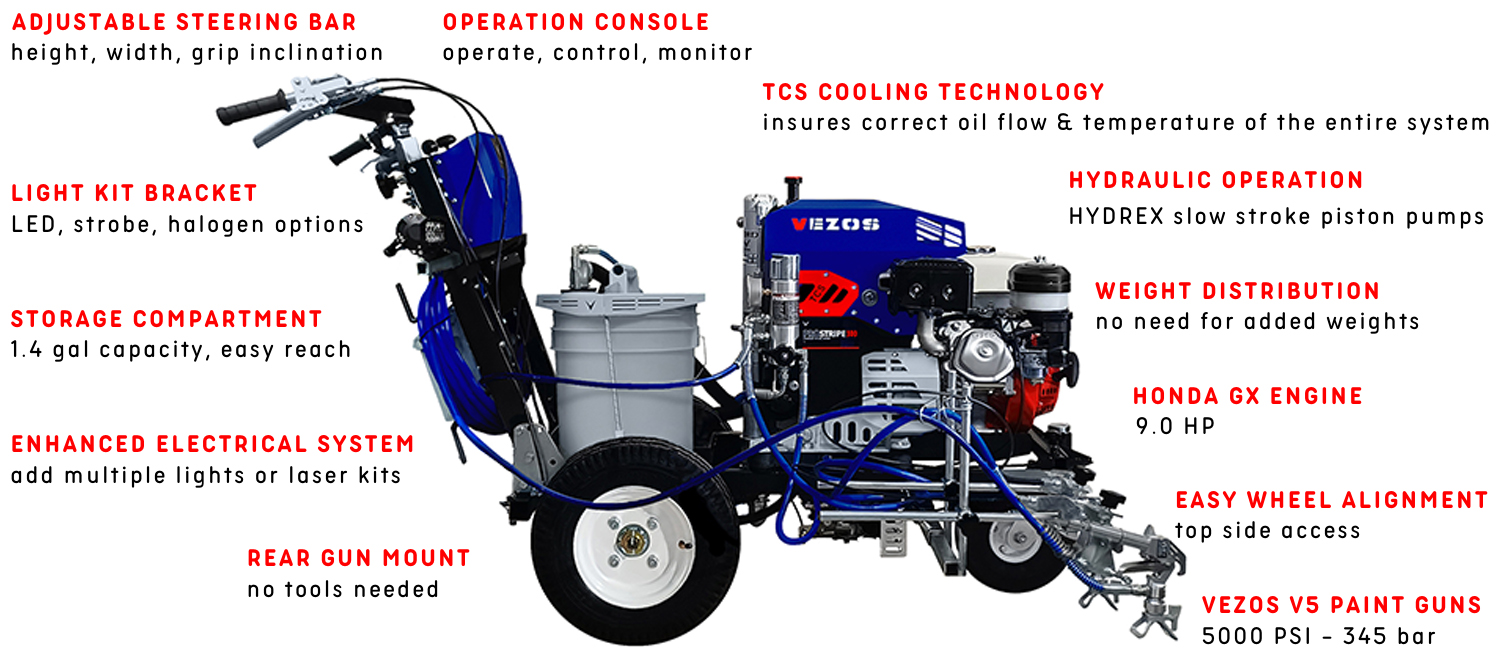

Hydraulic Self-Propelled Line Striper PROSTRIPE 300
PROSTRIPE 300 SP is a self-propelled hydraulic line striper, with its SP system located on the line striper allowing its users to either connect the FLIPDRIVE double ride method line striper seat or use the unit as a push along striper, the SP system will do all the hard work.
SELF-PROPELLED LINE STRIPER
√ SP system located directly on the striper
√ 3-way drive / ride system
√ Motorcycle type motion control drive
√ Operation speed 16 km/h - 10 mph
WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
√ Road view ahead even in sitting position
√ Extreme visibility even with glass bead tank in place
√ No head or body tilting to stripe | Safety first
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 70
√ 1 & 2 colour set up
√ Slow stroke 8.5 lit/m - 2.3 gal/min delivery
√ Built in filter
PAINT HOPPER 68 lit | 18 gal (optional)
√ Low profile paint tank for increased visibility
√ Single or double colour
√ Lift brackets & security hitches
GLASS BEAD HOPPER 32 kg | 70 lbs (optional)
√ Gravity tech bead system
√ Steel hopper with wide opening
√ Easy connection, no tools needed
MANUAL GUN OPERATION
√ 1-2 manual paint gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ Removable gun for stencilling
OPERATION CONSOLE PS 300
√ Kill switch | Engine throttle
√ Engine & system ON/OFF
√ Pressure gauge
√ Hand brake
√ Cup holder
FLIPDRIVE LINE STRIPE SEAT (optional)
√ Double ascent ride | sit – stand ride along
√ Tow behind attachment
√ Rear extra space for cones or gas tank
√ Hidden tool compartment with anti-slip surface
EXTRA FEATURES
√ T.C.S cooling technology
√ Re-striping pointer
√ Hydraulic oil reservoir 9 lit & oil level indicator
√ Anti-vibrations control
| MODEL | PROSTRIPE 300 | PROSTRIPE 300 | PROSTRIPE 300 |
| MANUAL | MANUAL | MANUAL + TB RIDER | |
| Material delivery (max) gpm | 2.3 | 2.3 | 2.3 |
| Material delivery (max) lpm | 8.5 | 8.5 | 8.5 |
| Working pressure (max) psi | 3350 | 3350 | 3350 |
| Working pressure (max) bar | 230 | 230 | 230 |
| Type | self-propelled | self-propelled | self-propelled |
| Engine | HONDA 9.0 HP | HONDA 9.0 HP | HONDA 9.0 HP |
| Pump | HYDREX 70 | HYDREX 70 | HYDREX 70 |
| Color - Pump | 1 color | 1 color | 1 color |
| Gun setup | 1 | 2 | 2 |
| System - Operation | Manual | Manual | Manual |
| Dimensions (striper) in | 67x28x42 (h) | 67x28x42 (h) | 67x28x42 (h) |
| Dimensions (striper) cm | 170x72x107(h) | 170x72x107(h) | 170x72x107(h) |
| Includes: | |||
| Paint gun | 1 | 2 | 2 |
| Guard | 1 | 2 | 2 |
| Tip | 1 | 2 | 2 |
| Glass bead gun | - | - | - |
| Rider tow-behind | - | - | included |
| Controller | - | - | - |
| Paint hopper 18 gal | - | - | - |
| Paint hopper 22 gal | - | - | - |
| Glass bead system gravity 70 lbs | - | - | - |
| Glass bead system pressurized 80 lbs | - | - | - |
| Part Number | 23.9255027 | 23.9255028 | 23.9255029 |
| Optional Add-ons: | |||
| Paint hopper 18 gal | 23.9214000 | 23.9214000 | 23.9214000 |
| Glass bead system gravity 70 lbs | 23.9224300 | 23.9224322 | 23.9224322 |
| Pointer | 23.7002204 | 23.7002204 | 23.7002204 |
| Rider tow-behind | 23.9115501 | 23.9115501 | - |
