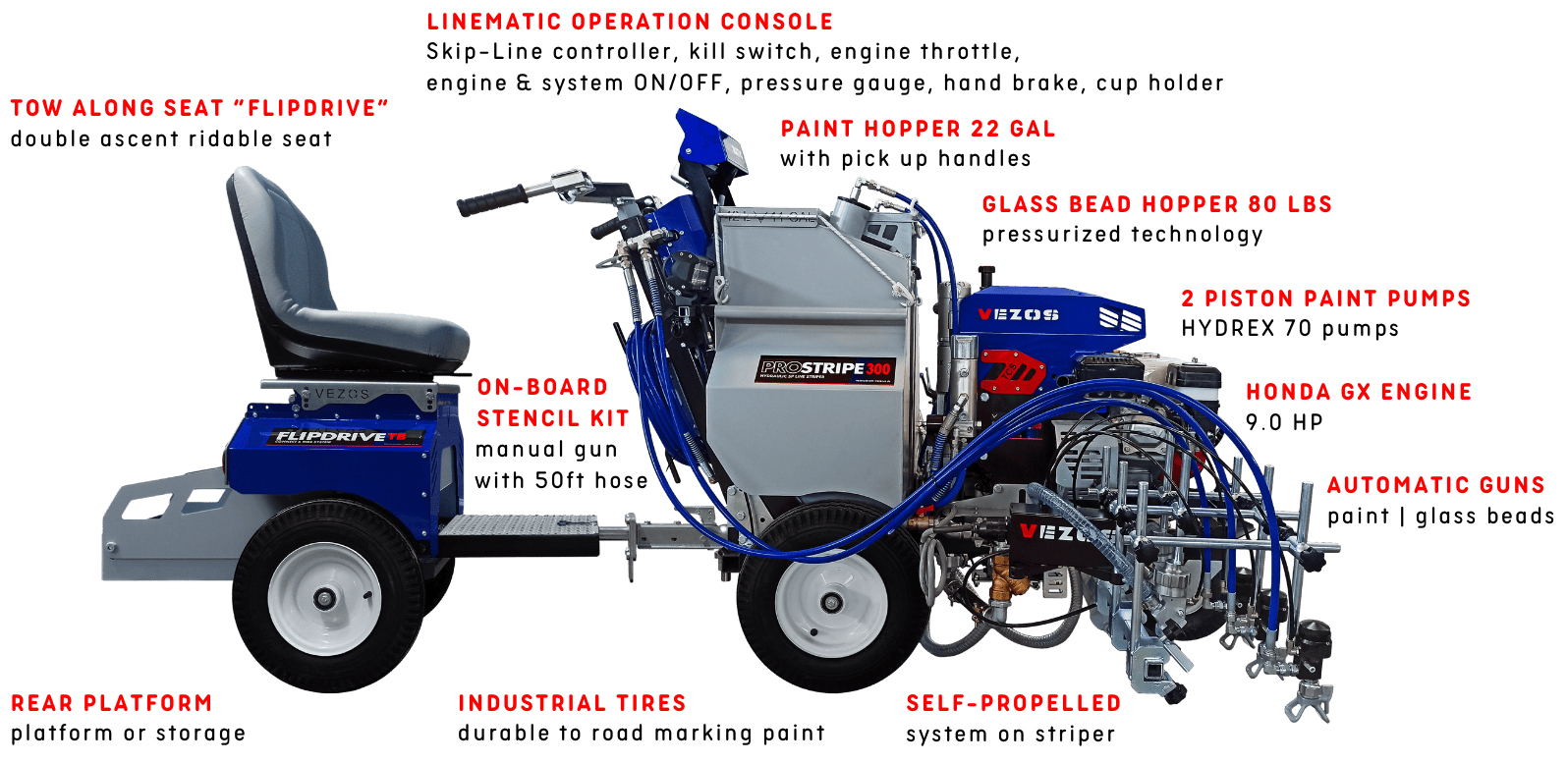

Hydraulic Self Propelled Line Striper PROSTRIPE 300 SP AUTOMATIC with FLIPDRIVE line striping seat / platform
The PROSTRIPE 300 SP AUTO line striper is a self-propelled unit with its SP system located directly on the striper, when desired the FLIPDRIVE chair can be attached for users to ride the set up either sitting or standing, and enjoy a panoramic site view up to 2m ahead.
Includes:
- FLIPDRIVE line striper seat
- Skip controller
- Pressurized glass bead tank
- Paint hopper
- Automatic airless spray gun(s) x 2 qty
- Glass bead triggers x 2qty
SELF-PROPELLED LINE STRIPER
√ SP system located directly on the striper
√ 3-way drive / ride system
√ Motorcycle type motion control drive
√ Operation speed 16 km/h
WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
√ Road view ahead even in sitting position
√ Extreme visibility even with glass bead tank in place
√ No head or body tilting to stripe | Safety first
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 70
√ 1 color set up (2 color optional)
√ Slow stroke 8.5 l/m (2.3 gal/min) delivery
√ Built in filter
PAINT HOPPER
√ Low profile paint tank for increased visibility
√ Single color with pump inlet
√ Lift brackets & security hitches
GLASS BEAD TANK 24 lit | 6.5 gal
√ Pressurized bead system
√ Steel tank with pop up valve for increased safety
√ Removable loading funnel (no tools required)
AUTOMATIC GUN OPERATION
√ 1-2 automatic paint & glass gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ On board stencil kit with manual airless spray gun & hose
√ Two piston high volume air compressor to support multiple bead guns with 3.6 lit air accumulator
OPERATION CONSOLE PS 300
√ Skip line controller for multiple gun operation
√ Kill switch | Engine throttle
√ Engine & system ON/OFF
√ Gun actuator (trigger)
√ Hand brake & cup holder
FLIPDRIVE LINE STRIPE SEAT
√ Double ascent ride | sit – stand ride along
√ Tow behind attachment
√ Rear extra space for cones or gas tank
√ Hidden tool compartment with anti-slip surface
√ Hydraulic oil reservoir with two divided sections & oil level indicator
√ Anti-vibrations control
EXTRA FEATURES
√ TCS cooling technology
√ Re-striping pointer
√ Sensor box with solenoid electro-pneumatic valve
√ Hydraulic oil reservoir & oil level indicator
√ Anti-vibrations control
Brochures
Download: VEZOS Road Marking - Line String Catalog
