Walk Behind Line Striper PROSTRIPE 200 - 1 or 2 Gun Paint Sprayer

SKU: 23.9017410  /  Product Availability: Yes  /   Manufacturer: VEZOS

Walk Behind Line Striping Machine PROSTRIPE 200 WB | 1 or 2 Paint Gun

PROSTRIPE 200 line striping machine is contractor’s initial choice for parking lot striping & local pavement marking. Equipped with VEZOS powerful slow stroke hydraulic pump, working at 230 bar pressure & an 1.7 gpm, the PROSTRIPE 200 offers hydraulic power in every aspect. VEZOS PROSTRIPE 200 has a unique foldable chassis, allowing this paint striping machine to be easily transported in any vehicle & stored away without taking up space. For extra stability, the PROSTRIPE 200 has the largest front swivel wheel in the industry and an improved anti-vibration system, ensuring perfect straight line no matter the surface.



Back to: Walk Behind Line Stripers

Get Price Online Catalog Video



walk behind line striper vezos prostripe 200









PROSTRIPE 200 Standard Hydraulic Line Striper is a new edition to the range.
Equipped with VEZOS slow stroke hydraulic pump, this basic edition
is appropriate for parking lot line striping, with 1 or 2 guns.
Foldable chassis for easy transportation & storage.

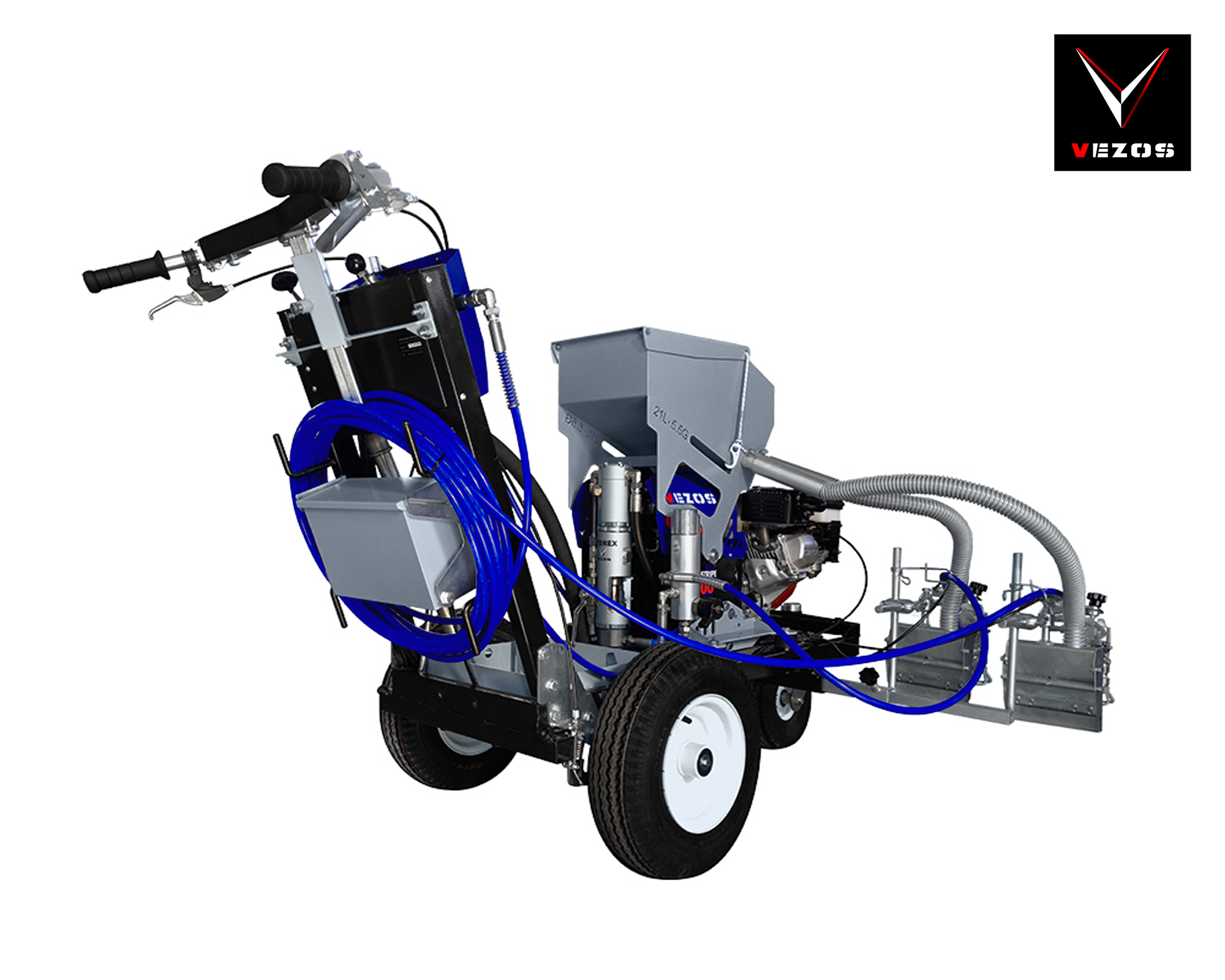

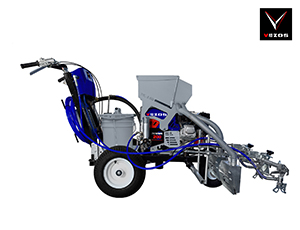

Add VEZOS 68 lit - 18 gal paint hopper & VEZOS 32 kg - 70 lbs vibrated assisted bead hopper
















vezos walk behind line striper prostripe 200 - 1 paint gun

WIDE VIEW DESIGN
Low profile design for panoramic view of job site

HYDREX PISTON PUMP
Hydraulic piston pump HYDREX 50
Slow stroke 6.5 lit/min - 1.7 gal/min delivery
Built in filter

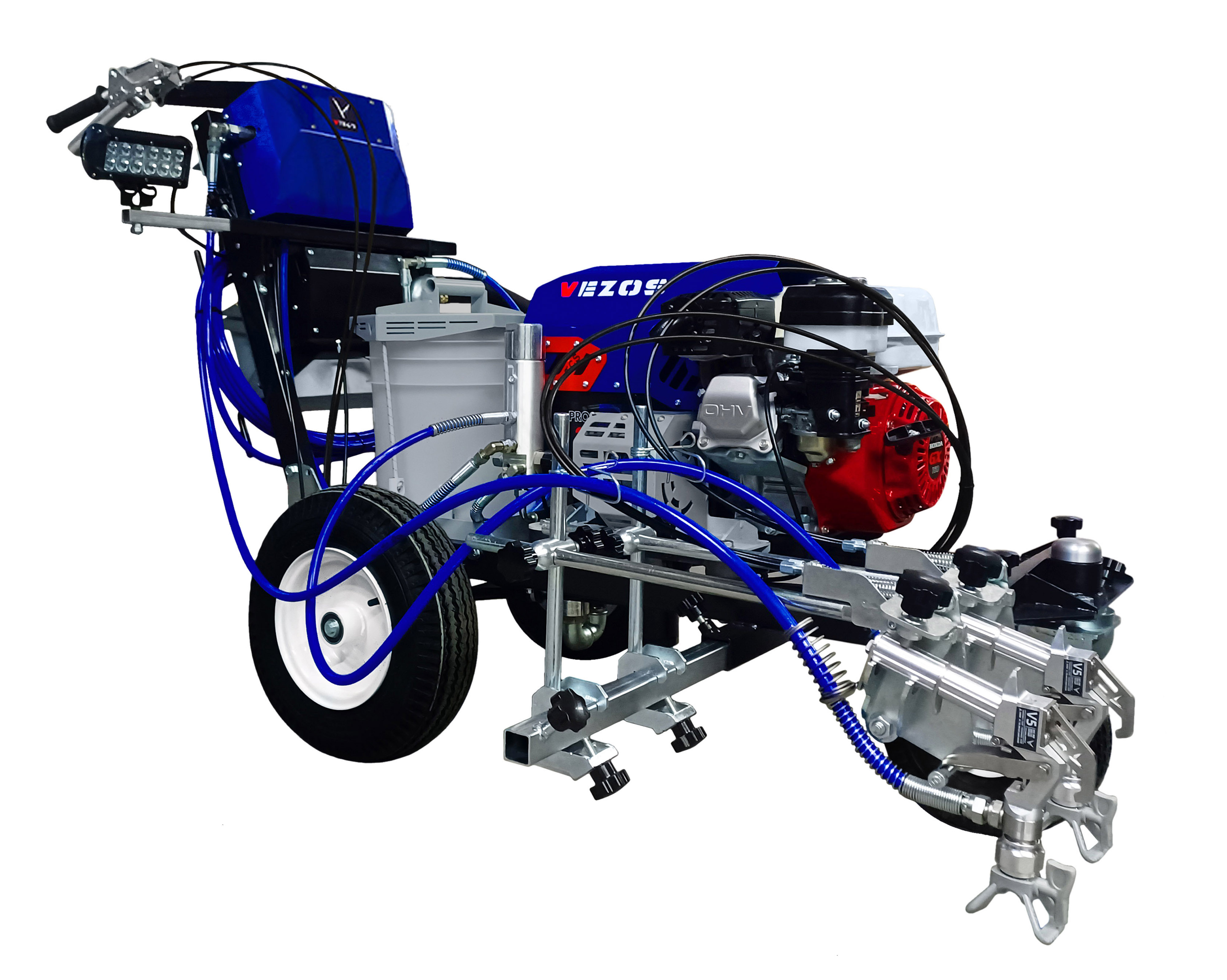

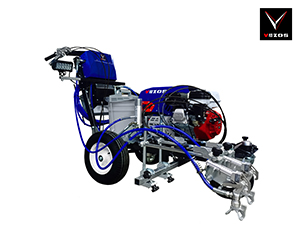

MANUAL GUN OPERATION
1-2 manual paint gun set-up
Adjustable gun height
Front and rear gun placement
Removable gun for stencilling

OPERATION CONSOLE PS 200
Engine throttle
Engine & system ON/OFF
Pressure gauge
Hand brake
Cup holder

EXTRA FEATURES
T.C.S cooling technology
Re-striping pointer
Hydraulic oil reservoir 9 lit & oil level indicator
Anti-vibrations control

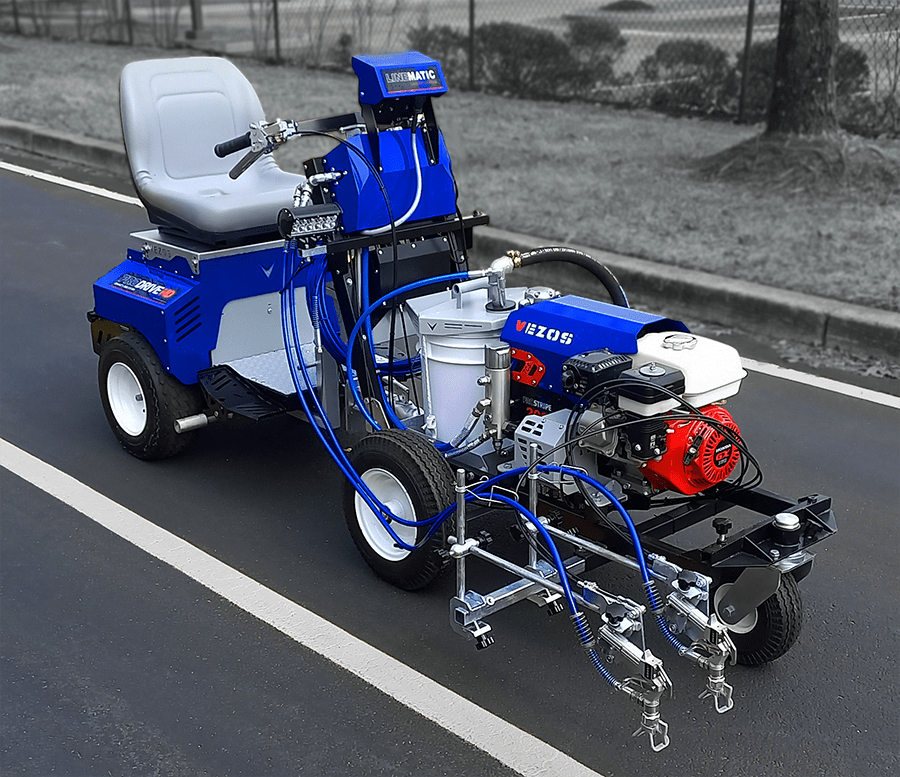

MODEL PROSTRIPE 200  PROSTRIPE 200  PROSTRIPE 200
MANUAL  MANUAL  MANUAL + PRODRIVE
Material delivery (max) gpm 1.7 1.7 1.7
Material delivery (max) lpm 6.5 6.5 6.5
Working pressure (max) psi 3350 3350 3350
Working pressure (max) bar 230 230 230
Type  walk-behind walk-behind walk-behind
Engine HONDA 4.8 HP HONDA 4.8 HP HONDA 4.8 HP
Pump  HYDREX 50 HYDREX 50 HYDREX 50
Color - Pump 1 color  1 color  1 color
Gun setup 1 2 2
System - Operation Manual  Manual  Manual
Dimensions (striper) in 47x31.5x47 (h) 47x31.5x47 (h) 47x31.5x47 (h)
Dimensions (striper) cm 120x80x120 (h)  120x80x120 (h)  120x80x120 (h)
INCLUDES:
Paint gun  1 2 2
Guard  1 2 2
Tip  1 2 2
Driver SP - - included
Controller - - -
Part Number 23.9017410 23.9017411 23.9017411PD
Optional Add-ons:
Paint hopper 18 gal 23.9214000 23.9214000 23.9214000
Glass bead system gravity 70 lbs 23.9224300 23.9224322 23.9224322
Pointer  23.7002204 23.7002204 23.7002204
